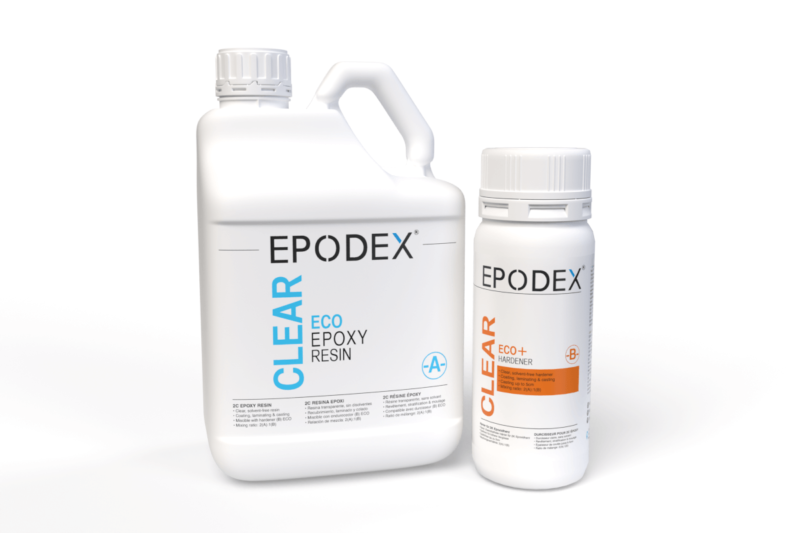

EPODEX – ECO+ System
The ECO+ epoxy resin system is our low-cost casting resin system that was especially developed for the making of coloured river tables and other objects. This system can be mixed with all our epoxy resin dyes and pigments.
Instructions for use
- Always start with an epoxy resin primer to avoid high material loss and blistering (layer thickness: 0,2-0,5mm). To do so, simply use a portion of the same clear epoxy resin. As an alternative, you can also use our ECO system for the primer. The ECO system has the advantage to be designed for thinner layers and cures within 16-24hours.
- Mix the ECO resin A-component with the ECO+ hardener B-component in a ratio of 2:1 (e.g. 2kg resin: 1kg hardener).
- Stir through the edge and bottom of the mixing cup as the material will settle there. Ideally, pour into a clean mixing cup and mix again until the mixture is streak-free. This ensures that the resin A-component and hardener B-component are completely mixed together.
- Paint the epoxy primer with a paint roller or brush on the desired surface. We recommend rollers made of polyamide. Let the primer cure.
- You can find more detailed information in our information table under the “Learn more” button on this product page.
- Continue with the main coating in the same way. If you select a colour on this product page, you will receive dyes or colour pigments in addition to the resin and hardener.
- To colour the main coating, mix the supplied colour with the resin A-component or with the resin-hardener mixture. Adjust the colour intensity individually by adding more or less colour pigments.
Consumption volumes
Determine the required amount of resin needed with the help of our epoxy resin “Epoxy calculator” on this product page.
Recommended amount of colouring agent per kg of resin+hardener:
- Powder pigments (Metallic, Neon and Glow in the dark): 1,5% (15g),
- Transparent dyes (except white and grey): 60 drops (1,8g),
- Transparent white and grey dyes: 20 drops dye (0,6g),
- Semi-transparent dyes (except white): 40 drops (1,2g) of the desired colour and 20 drops (0,6g) of white dye,
- Semi-transparent white: 60 drops of white dye (1,8g),
- RAL solid colour: 1% (10g),
- Glitter pigments: 1% (10g)
Customer Service: If you have further questions, please contact us by phone, e-mail or use our WhatsApp support.
Note: Please note that due to different lighting conditions and monitors, the colours may not be uniformly displayed.
Ingredients, Security & Danger statements
A-Components (ECO) Warning: 2,2′-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)]bisoxirane Reaction mass of 2,2’-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2’-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane Oxirane, mono((C12-14-alkyloxy)methyl)derivs Causes skin irritation Causes serious eye irritation May cause an allergic skin reaction Toxic to aquatic life with long lasting effects Avoid breathing dust/fume/gas/mist/vapours/spray. Avoid release to the environment. Wear protective gloves/eye protection/face protection. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If skin irritation or rash occurs: Get medical advice/attention. Dispose of contents/container to in accordance with local/regional/international regulations. Contains epoxy constituents. May produce an allergic reaction.
B-Components (ECO+) Danger: Polyoxypropylene triamine Harmful if swallowed or in contact with skin Causes serious eye damage. Toxic to aquatic life with long lasting effects Wash skin thoroughly after handling. Avoid release to the environment. Wear protective gloves/protective clothing/eye protection/face protection. IF ON SKIN: Wash with plenty of water. Call a POISON CENTRE/doctor if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER/doctor. Collect spillage.
